LED Integrated Linears
If you don’t want to keep your existing fixture or you simply don’t have one, our integrated linear lighting is the perfect solution. Completely self-contained, these lights are a fixture within themselves. Available in T5 and T8 along with V-type and Doubles.

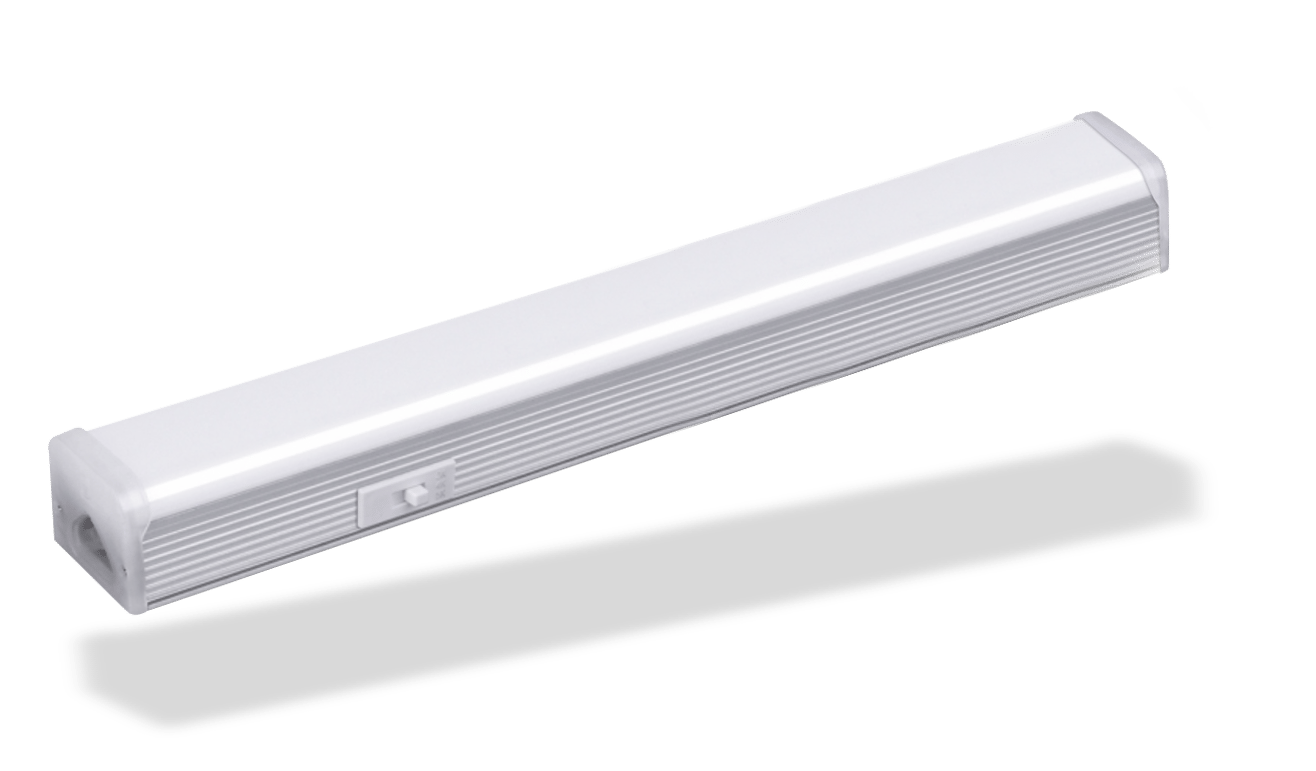

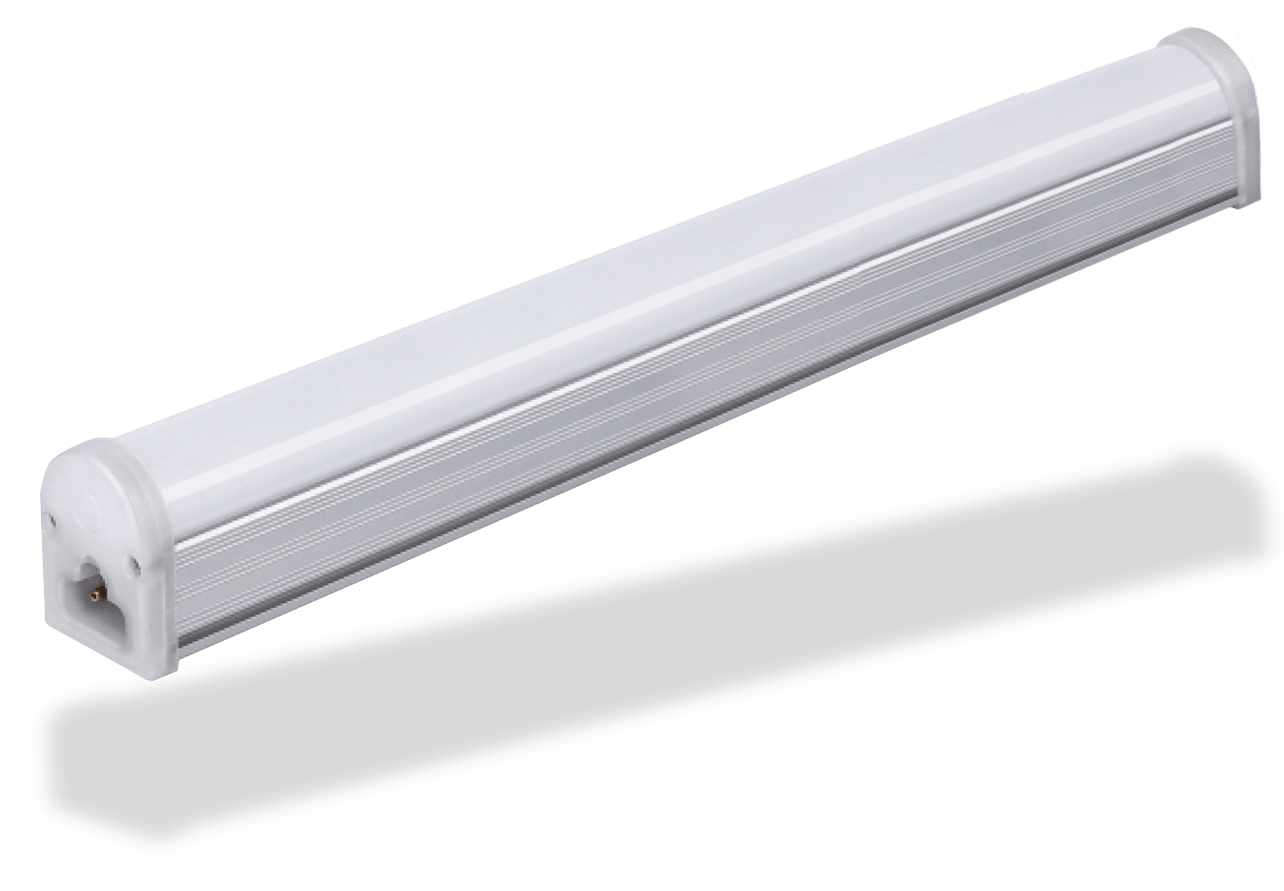

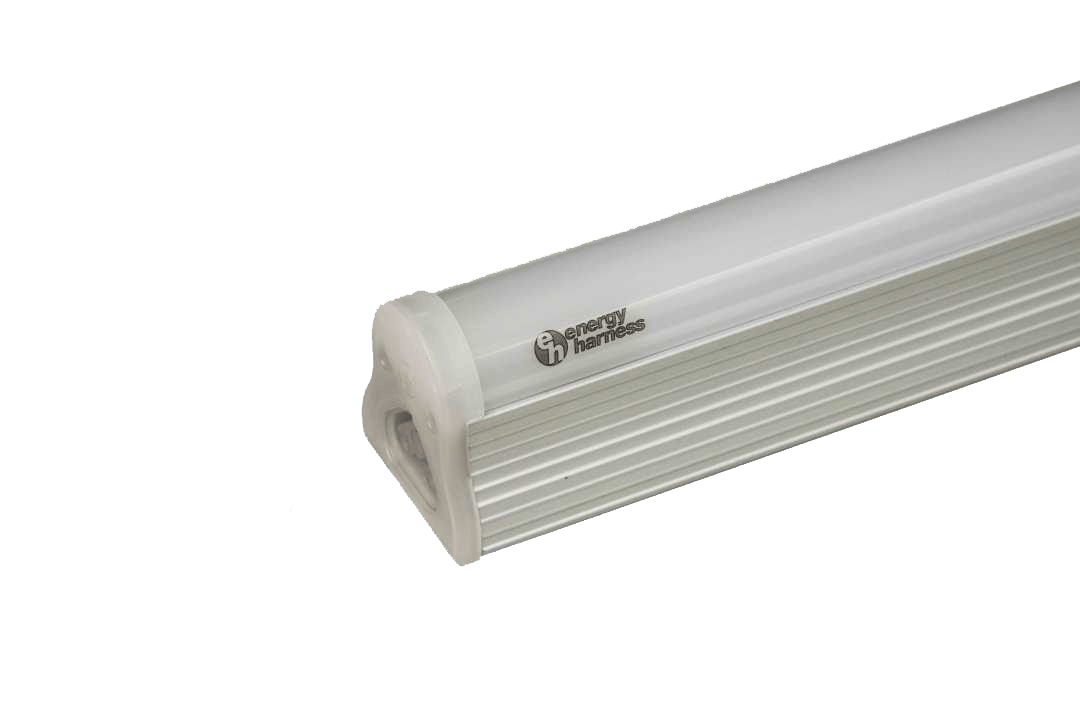

T5 Options
Available in both singles and doubles, these T5 integrated lights are perfect for placing into existing fixtures or using as standalone fixtures.
Spec Chart
|
| T5 Double: | 2' | 3' | 4' | 5' |
| EHC Part Number | EHI24D-T515-xxK | EHI36D-T525-xxK | EHI48-T530-xxK | EHI60D-T540xxK |
| Wattage | 15W | 25W | 30W | 40W |
| Lumens | 1510lm | 2575lm | 3031lm | 3575lm |
| Actual Size (in) | 22.28" | 35.21" | 45.91" | 59.06" |
| Color (CCT) | 3000K, 4000K, 5000K | 3000K, 4000K, 5000K | 3000K, 4000K, 5000K | 3000K, 4000K, 5000K |
| Replacement | 30-45W | 45-60W | 50-65W | 60-75W |
Sizes
6”, 24”, 36”, 48”, 60”, 72″
Styles
Single, Double
Wattages
3W, 7W, 12W, 15W, 20W, 22W, 25W, 30W, 40W, 44W
Color Temperatures
3000K, 4000K, 5000K
Input Voltage
100-277VAC
Average lumens
3W-296lm, 7W-692lm, 12W-1195lm, 15W-1512lm, 20W-2019lm, 22W-2218lm, 25W-2575lm, 30W-3031lm, 40W-3575lm, 44W-3850lm
T8 Options
Maintenance-free due to not needing a ballast, T8 Integrated Linears are perfect for those hard-to-access places.
Spec Chart
| T8 Single: | 2' | 3' | 4' | 5' | 6' |
| EHC Part Number | EHI24-T809-xxK | EHI36-T813-xxK | EHI48-T822-xxK | EHI60-T825-xxK | EHI72-T828-xxK |
| Wattage | 9W | 13W | 22W | 25W | 28W |
| Lumens | 993lm | 1403lm | 2389lm | 2315lm | 2590lm |
| Actual Length (in) | 22.91" | 34.96" | 46.93" | 58.78" | 69.09" |
| Color (CCT) | 3000K, 4000K, 5000K | 3000K, 4000K, 5000K | 3000K, 4000K, 5000K, 6500K | 4000K, 5000K | 4000K, 5000K |
| Replacement | 15-25W | 20-30W | 30-40W | 50-75W | 70-85W |
| T8 V-Type: | 2' | 3' | 4' | 5' | 6' |
| EHC Part Number | EHI24V-T815-xxK | EHI36V-T816-xxK | EHI48V-T822-xxK | EHI60V-T825-xxK | EHI72V-T828-xxK |
| Wattage | 15W | 16W | 22W | 25W | 28W |
| Lumens | 692lm | 1195lm | 1512lm | 2019lm | 2218lm |
| Actual Length (in) | 22.91" | 34.96" | 46.93" | 58.78" | 69.09" |
| Color (CCT) | 5000K | 5000K | 5000K | 5000K | 5000K |
| Replacement | 15-25W | 20-30W | 30-40W | 50-75W | 70-85W |
Sizes
24”, 36”, 48”, 60”, 72”
Styles
Single, V-Type
Wattages
9W, 13W, 15W, 16W, 22W, 25W, 28W
Color Temperatures
3000K (Singles- 4ft and Under Only), 4000K (Singles Only) 5000K (Singles and V-Types) 6500K (4’ Singles only)
Input Voltage
100-277VAC
Average Lumens
9W-993lm, 13W-1403lm, 16W-1195lm, 22W-2389lm, 25W-2315lm, 28W-2590lm
