LED Retrofit Options

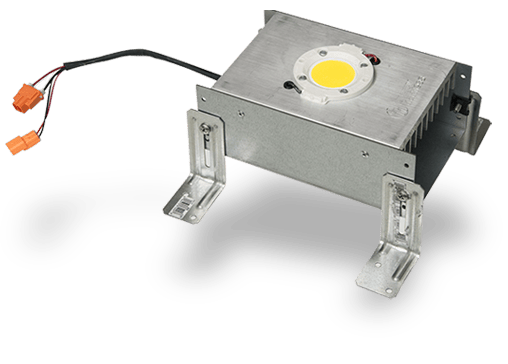

EHC Retrofit Kit
Manufactured in Cape Coral, FL, the EHC Retrofit kit is the ultimate LED lighting solution. For the person that likes the way a light fixture looks but needs some more oomph. Keep your existing fixture, and just upgrade your light!
Spec Chart
| KIT: | 60W | 90W | 90W |
| EHC Part Number | EHK-06050K-120277V | EHK-09050K-120-277V | EHK-09050K-200-528V |
| Replacement | 150-180W | 250-400W | 250-400W |
| Wattage | 60W | 90W | 90W |
| Lumens | 9120lm | 13680lm | 13680lm |
| Size (L" x W") | 7" x 4.25" | 7" x 4.25" | 7" x 4.25" |
| Voltage (VAC) | 100-277VAC | 100-277VAC | 200-528VAC |
See Specifications for more options
Wattages
45W, 60W, 90W, 150W, 300W
Input Voltages
100-277VAC, 200-528VAC (90W, 150W, 300W only)
Color Temperature
5000K
Average Lumens
45W-6840lm, 60W-9120lm, 90W-13680lm, 150W-21900lm, 300W-43800lm
Magnetic Retrofit Kit
With an innovative magnetic backing, these tubes can be easily and quickly installed in almost any situation. With external drivers connecting up to four tubes at once, it provides a great alternative to replacing entire fixtures.
Driver Wattages
45W (for connecting three 15W lamps), 60W (for connecting four 15W lamps.)
Color Temperature
5000K
Input Voltage
100-277VAC
Average Lumens
45W-5850lm, 60W-7800lm
Spec Chart
| LED Magnetic Retrofit Kit | 3-Lamps 4' Fixture | 4-Lamp 4' Fixture |
| EHC Part Number | EHL48F-RETRO-1540K-277-3LAMP | EHL48F-RETRO-1540K-277-4LAMP |
| Replacement | 3-Lamp 4' Fixture | 4-Lamp 4' Fixture |
| Wattage | 45W (3 15W Lamps) | 60W (4 15W Lamps) |
| Lumens | 5850lm | 7800lm |
| Efficacy | 130lm/w | 130lm/w |
| Size (L"x W"x H") | 44.5" x 0.98" x 086" | 44.5" x 0.98" x .086" |
| Color (CCT) | 5000K | 5000K |
| Voltage | 100-277VAC | 100-277VAC |
| DLC Number | PCM2A81L | P8QE8M81 |
