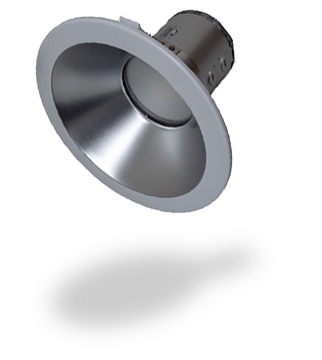

Recessed LED Downlight
Energy Harness® Recessed LED Downlights are a great replacement for traditional recessed can lighting. With several size options, they are sure to meet your needs. These lights are great for hospitals, churches, walkways, offices, and much more! With countless applications our Recessed LED Down Lights are sure to improve the quality of your lighting!
LED Recessed Downlighting Options
Energy Harness® Recessed LED Downlights are a great replacement for traditional recessed can lighting. With several size options, they are sure to meet your needs. Not only do they upgrade your light output but also use less energy than traditional downlights.
Spec Chart
| Recessed LED Downlighting | |||
| EHC Part Number | EHD#-DP-15-347-D010 | EHD#-DP-20-347-D010 | EHD#-DP-40-347-D010 |
| Voltage | 347 = 120- 347VAC | 347 = 120-347VAC | 347 = 120-347VAC |
| Wattage | 15W | 20W | 27W, 34W, 40W Selectable |
| Lumens | 1050lm, 1275lm, 1125lm | 1400lm, 1600lm, 1400lm | See Spec sheet |
| Efficacy | 70lm/w, 85lm/w, 75lm/w | 70lm/w, 80lm/w, 70lm/w | See Spec Sheet |
| Trim Size | 4 = 4" | 6 = 6" | 8 = 8" | 10 = 10" | 4 = 4" | 6 = 6" | 8 = 8" | 10 = 10" | 4 = 4" | 6 = 6" | 8 = 8" | 10 = 10" |
| Color (CCT) Tunable | DP = CCT Selectable Switch | DP = CCT Selecable Switch | DP = CCT Selectable Switch |
| 35K = 3500K (available 15W, 20W only) | 35K = 3500K (available 15W, 20W only) | 35K = 3500K (available 15W, 20W only) | |
| 50K = 5000K (available 27W, 34W, 40W only | 50K = 5000K (available 27W, 34W, 40W only) | 50K = 5000K (available 27W, 34W, 40W only) |
Recessed LED Downlight
Energy Harness® Recessed LED Downlights are a great replacement for traditional recessed can lighting. With several size options, they are sure to meet your needs. Not only do they upgrade your light output but also use less energy than traditional downlights.
Spec Chart
| Recessed LED Downlighting | |||
| EHC Part Number | EHD#-DP-15-347-D010 | EHD#-DP-20-347-D010 | EHD#-DP-40-347-D010 |
| Voltage | 347 = 120- 347VAC | 347 = 120-347VAC | 347 = 120-347VAC |
| Wattage | 15W | 20W | 27W, 34W, 40W Selectable |
| Lumens | 1050lm, 1275lm, 1125lm | 1400lm, 1600lm, 1400lm | See Spec sheet |
| Efficacy | 70lm/w, 85lm/w, 75lm/w | 70lm/w, 80lm/w, 70lm/w | See Spec Sheet |
| Trim Size | 4 = 4" | 6 = 6" | 8 = 8" | 10 = 10" | 4 = 4" | 6 = 6" | 8 = 8" | 10 = 10" | 4 = 4" | 6 = 6" | 8 = 8" | 10 = 10" |
| Color (CCT) Tunable | DP = CCT Selectable Switch | DP = CCT Selecable Switch | DP = CCT Selectable Switch |
| 35K = 3500K (available 15W, 20W only) | 35K = 3500K (available 15W, 20W only) | 35K = 3500K (available 15W, 20W only) | |
| 50K = 5000K (available 27W, 34W, 40W only | 50K = 5000K (available 27W, 34W, 40W only) | 50K = 5000K (available 27W, 34W, 40W only) |
Size
4”, 6″, 8″
Wattages
15W
Input Voltage
120-277VAC
Color Temperatures
4000K
Average lumens
1245lm
Efficacy
83 lm/w
