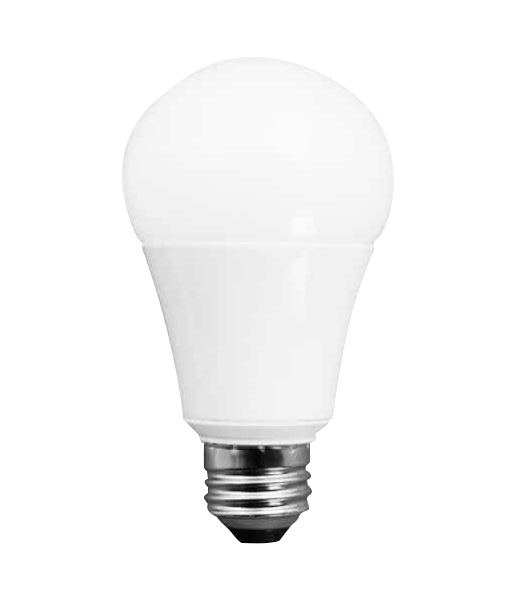

A19s / A21s (120VAC)
Omni-directional All-purpose 3-way
TCP’s LED A-Lamps provide the lighting you need at a cost you will love. Advanced factory techniques and rigorous testing ensure each lamp is perfect from day one. Install an LED A-lamp wherever you would a traditional lamp and see the improvement.
Features/Uses
- 40W Incandescent replacement
- 60W Incandescent replacement
- 100W Incandescent replacement
- 120 VAC only
- TRIAC Dimmable
- E26 screw-in base
- 25000 hours lifespan
- CRI 80
- UL approved for damp locations
- Durable polycarbonate material for shatterproof composition
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-A19-0627K-E26-120-DTRIAC | L40A19D2527K | 40W Incandescent | 6 | 2700K |
| EHB-A19-0630K-E26-120-DTRIAC | L40A19D2530K | 40W Incandescent | 6 | 3000K |
| EHB-A19-0641K-E26-120-DTRIAC | L40A19D2541K | 40W Incandescent | 6 | 4100K |
| EHB-A19-0650K-E26-120-DTRIAC | L40A19D2550K | 40W Incandescent | 6 | 5000K |
| EHB-A19-0927K-E26-120-DTRIAC | L9A19D2527K | 40W Incandescent | 6 | 2700K |
| EHB-A19-0930K-E26-120-DTRIAC | L9A19D2530K | 60W Incandescent | 9 | 3000K |
| EHB-A19-0941K-E26-120-DTRIAC | L9A19D2541K | 60W Incandescent | 9 | 4100K |
| EHB-A19-0950K-E26-120-DTRIAC | L9A19D2550K | 60W Incandescent | 9 | 5000K |
| EHB-A21-1527K-E26-120-DTRIAC | L15A19D2527K | 100W Incandescent | 15 | 2700K |
| EHB-A21-1530K-E26-120-DTRIAC | L15A19D2530K | 100W Incandescent | 15 | 3000K |
| EHB-A21-1541K-E26-120-DTRIAC | L15A19D2541K | 100W Incandescent | 15 | 4100K |
| EHB-A21-1550K-E26-120-DTRIAC | L15A19D2550K | 100W Incandescent | 15 | 5000K |

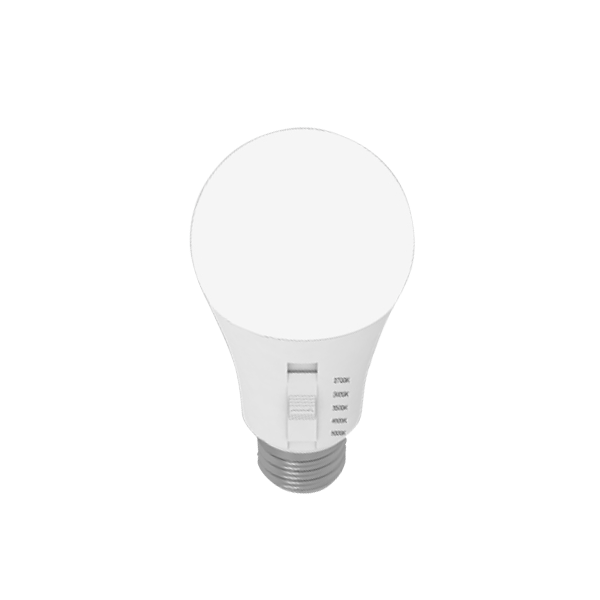

A19s (120-277VAC)
Suitable to replace 60W incandescent lamps with SelectKelvin Technology for colors ranging from 2700K to 5000K
Features
- 60W incandescent replacement
- Option for 120-277 VAC
- SelectKelvin Technology: five field-selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
- High CRI of 92 with R values (R9 50, R13 95) for richer reds and natural skin tones
- Smooth dimming with most forward and reverse phase dimmers*
- Suitable for use in totally enclosed fixtures and damp locations
- Rated Lifetime (L70): 25,000hrs
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-A19-09W-CCT-E26-277 | 9A19/9CCTS/277V (38346) | 60W Incandescent | 9 | 2700K, 3000K, 3500K, 4000K & 5000K |

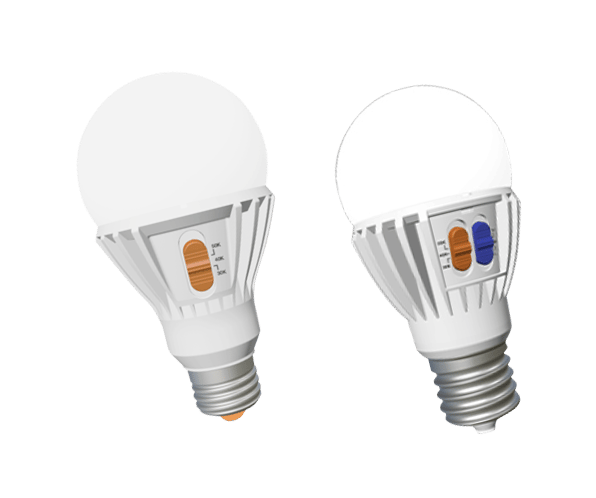

A21s / A23s / PS30s (120-277VAC)
Large Incandescent / HID Replacements
The A23 and PS30 versions feature an integrated side switch for step-dimming control.
3 Level Lumen Output
SelectDrive technology allows lumen to be tailored to application requirements and can be adjusted from 70% to 100%.
The A23 and PS30 versions come with an innovative proprietary lock cover that ensures the power and CCT settings remain unchanged after installation, securing rebates at each power setting level.
Features
- A21 = 125W incandescent replacement
- A23 (E26 base) = 200W incandescent replacement
- A23 (EX39 base) = 70-100W HID replacement
- PS30 (E26 base) = 300W incandescent replacement
- PS30 (EX39 base) = 100-175W HID replacement
- 120-277VAC
- Omnidirectional 230° beam angle
- Integral thermal sensor reduces power to the lamp in the event ambient temperature exceeds specified limitations
- A21 is smooth Triac/ELV dimming with existing installations*
- A23 & PS30 are smooth Triac/ELV dimming* and step-dimming using SelectDrive technology
- L70 rated lifetime up to 50,000 hours
- Suitable for use in totally enclosed fixtures and damp locations
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-A21-17W-CCT-E26-277 | 17A21/9CCTS/277V/DIM (37919) | 125W Incandescent | 17 | 3000K, 4000K & 5000K |
| EHB-A23-24W-CCT-E26-277 | 24HID/8CCTS/277V/E26/DIM/SD (37930) | 200W Incandescent | 24 | 3000K, 4000K & 5000K |
| EHB-A23-24W-CCT-E39-277 | 24HID/8CCTS/277V/EX39/DIM/SD (37931) | 70W-100W HID | 24 | 3000K, 4000K & 5000K |
| EHB-HID-34W-CCT-E26-277 | 34HID/8CCTS/277V/E26/DIM/SD (37932) | 300W Incandescent | 34 | 3000K, 4000K & 5000K |
| EHB-HID-34W-CCT-E39-277 | 34HID/8CCTS/277V/EX39/DIM/SD (37933) | 100W-175W HID | 34 | 3000K, 4000K & 5000K |

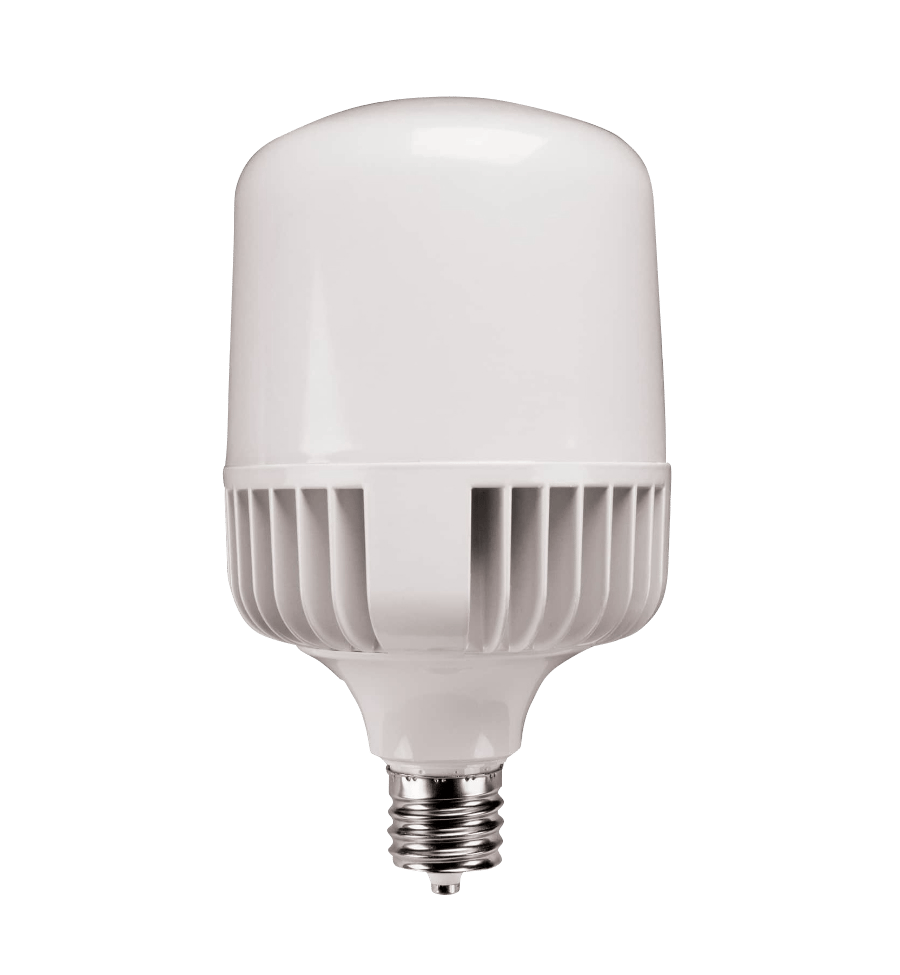

LED HID T-Shape Series (120-277VAC)
Large HID Replacements
Bypass • Directional 50,000 Hours
TCP’s LED T-shape HID replacements are changing the LED game. Unlike traditional HID and LED “Corn Cob” solutions, the TCP LED T-shapes are directional and deliver maximum lumens on the floor. The plastic lens helps to minimize glare and increase overall lamp performance.
Features
- 250-400W HID replacement
- 120-277VAC
- Lifespan up to 50,000 hours
- Directional 180° beam angle delivers maximum lumen distribution on the floor
- Isolated driver helps with heat dissipation
- Wet location rated – when exposed to water use only with device base up
- Approved for totally enclosed high bay and low bay fixtures with a minimum lamp compartment of 16 inches in diameter by 10.43 inches high*
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-HID-9040K-E39-277 | LHID25040 | 250W-400W Incandescent | 90 | 4000K |
| EHB-HID-9050K-E39-277 | LHID25050 | 250W-400W Incandescent | 90 | 5000K |

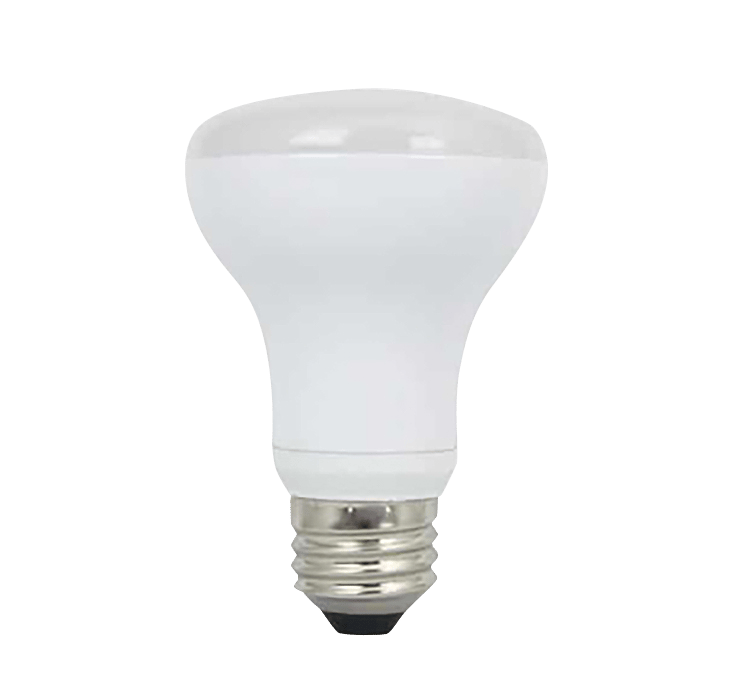

BR Lamps (120VAC)
TCP’s Elite Series LED BR Lamps combine the long-life and energy savings of LED technology with the look and feel of a traditional halogen lamp.
Features
• BR20 = 50W Incandescent replacement
• BR30 = 65W Incandescent replacement
• BR40 = 100W Incandescent replacement
• 120VAC TRIAC Dimmable
• 15,000 to 25,000 hour lifespan
• Low heat generation – perfect for sensitive display lighting
• Durable plastic housing lowers the risk of injury and breakage
• CRI 80
• UL approved for damp locations
• ANSI construction compliant – fits all BR installations
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-BR20-0827K-E26-120-DTRIAC | L7R20D2527K | 50W Incandescent | 7.5 | 2700K |
| EHB-BR20-0830K-E26-120-DTRIAC | L7R20D2530K | 50W Incandescent | 7.5 | 3000K |
| EHB-BR20-0841K-E26-120-DTRIAC | L7R20D2541K | 50W Incandescent | 7.5 | 4100K |
| EHB-BR30-1027K-E26-120-DTRIAC | LED12BR30D27K | 65W Incandescent | 9.5 | 2700K |
| EHB-BR30-1030K-E26-120-DTRIAC | LED12BR30D30K | 65W Incandescent | 9.5 | 3000K |
| EHB-BR30-1041K-E26-120-DTRIAC | LED12BR30D41K | 65W Incandescent | 9.5 | 4100K |
| EHB-BR30-1050K-E26-120-DTRIAC | LED12BR30D50K | 65W Incandescent | 9.5 | 5000K |
| EHB-BR40-1727K-E26-120-DTRIAC | LED17BR40D27K | 100W Incandescent | 15 | 2700K |
| EHB-BR40-1730K-E26-120-DTRIAC | LED17BR40D30K | 100W Incandescent | 15 | 3000K |
| EHB-BR40-1741K-E26-120-DTRIAC | LED17BR40D41K | 100W Incandescent | 15 | 4100K |
| EHB-BR40-1750K-E26-120-DTRIAC | LED17BR40D50K | 100W Incandescent | 15 | 5000K |

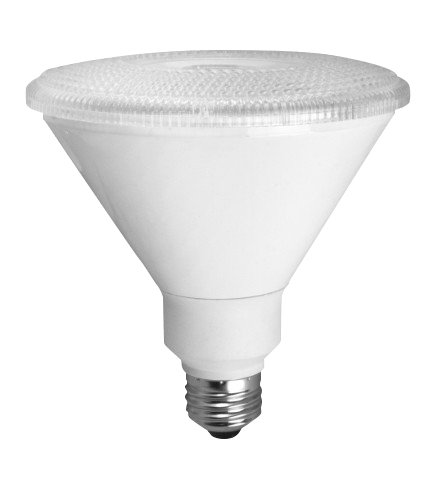

PAR Lamps (120VAC)
TCP’s award winning PAR lamps combine traditional beauty with top-notch technology. With a wide variety of options available, you can be sure to find the PAR lamps to meet your needs.
Features
• PAR20 = 50W Incandescent replacement
• PAR30 = 75W Incandescent replacement
• PAR38 = 120W Incandescent replacement
• 120VAC TRIAC Dimmable
• 25,000 hour lifespan
• UL approved for wet locations
• CRI 80
• Durable plastic lowers the risk for injury or breakage
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-PAR20-0727K-E26-120-DTRIAC | L7P20D2527KFL | 50W Incandescent | 7 | 2700K |
| EHB-PAR20-0730K-E26-120-DTRIAC | L7P20D2530KFL | 50W Incandescent | 7 | 3000K |
| EHB-PAR20-0741K-E26-120-DTRIAC | L7P20D2541KFL | 50W Incandescent | 7 | 4100K |
| EHB-PAR30-1427K-E26-120-DTRIAC | LED14P30D27KFL | 75W Incandescent | 13.5 | 2700K |
| EHB-PAR30-1430K-E26-120-DTRIAC | LED14P30D30KFL | 75W Incandescent | 13.5 | 3000K |
| EHB-PAR30-1441K-E26-120-DTRIAC | LED14P30D41KFL | 75W Incandescent | 13.5 | 4100K |
| EHB-PAR30-1450K-E26-120-DTRIAC | LED14P30D50KFL | 75W Incandescent | 13.5 | 5000K |
| EHB-PAR38-1527K-E26-120-DTRIAC | LED17P38D27KFL | 120W Incandescent | 15 | 2700K |
| EHB-PAR38-1530K-E26-120-DTRIAC | LED17P38D30KFL | 120W Incandescent | 15 | 3000K |
| EHB-PAR38-1541K-E26-120-DTRIAC | LED17P38D41KFL | 120W Incandescent | 15 | 4100K |
| EHB-PAR38-1550K-E26-120-DTRIAC | LED17P38D50KFL | 120W Incandescent | 15 | 5000K |

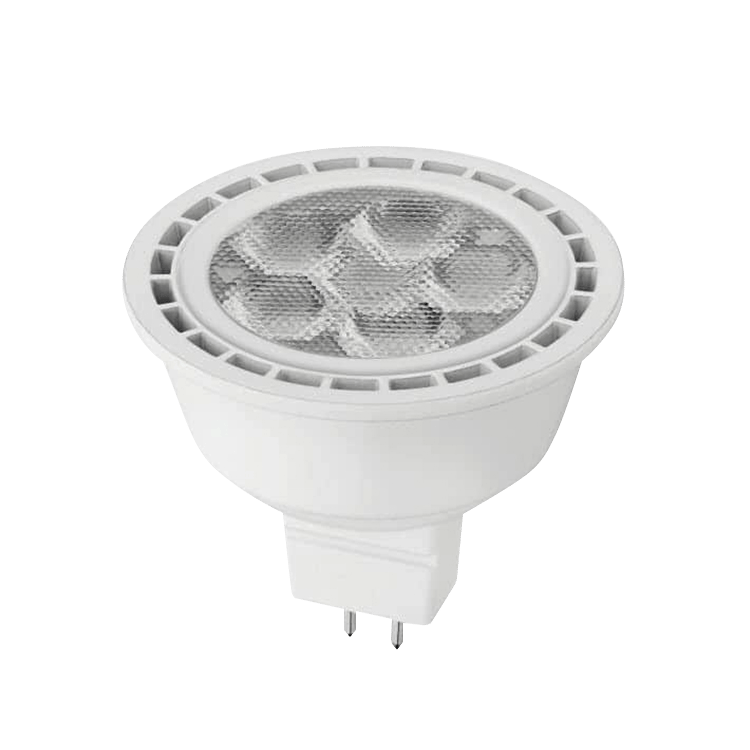

MR16 Lamps (120VAC/12V)
LED MR16s are the perfect replacement for 50 watt or 35 watt halogen lamps.
- MR16 = 50W Incandescent replacement
- GU10 base = 120VAC TRIAC Dimmable
- GU5.3 base = 12V TRIAC Dimmable
- 25,000 hour lifespan
- CRI 80
- Smooth, uniform dimming
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-MR16-0727K-GU10-120-DTRIAC | LED7MR16GU1027KFL | 50W Incandescent | 6 | 2700K |
| EHB-MR16-0727K-GU53-12-DTRIAC | LED712VMR16V27KFL | 50W Incandescent | 6.5 | 2700K |
| EHB-MR16-0730K-GU10-120-DTRIAC | LED7MR16GU1030KFL | 50W Incandescent | 6 | 3000K |
| EHB-MR16-0730K-GU53-12-DTRIAC | LED712VMR16V30KFL | 50W Incandescent | 6.5 | 3000K |
| EHB-MR16-0741K-GU10-120-DTRIAC | LED7MR16GU1041KFL | 50W Incandescent | 6 | 4100K |
| EHB-MR16-0741K-GU53-12-DTRIAC | LED712VMR16V41KFL | 50W Incandescent | 6.5 | 4100K |

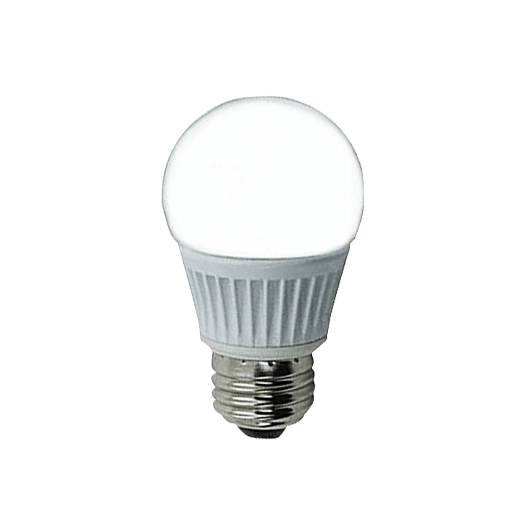

S14 Lamp (120VAC) - Wet Location
Non-Dimmable
Perfect for applications with hard to reach areas, vibration, and frequent starts.
Features
- Light output equivalent to 40W
- 120VAC Non-dimmable
- UL approved for wet locations
- Light output equivalent to 40W
- 25,000 hours lifespan
- E26 base
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-CAN-S14-0527K-E26-120-F | LED5E26S1427KF | 40W Incandescent | 5 | 2700K |
| EHB-CAN-S14-0541K-E26-120-C | LED5E26S1441K | 40W Incandescent | 5 | 3000K |
| EHB-CAN-S14-0541K-E26-120-F | LED5E26S1441KF | 40W Incandescent | 5 | 4100K |

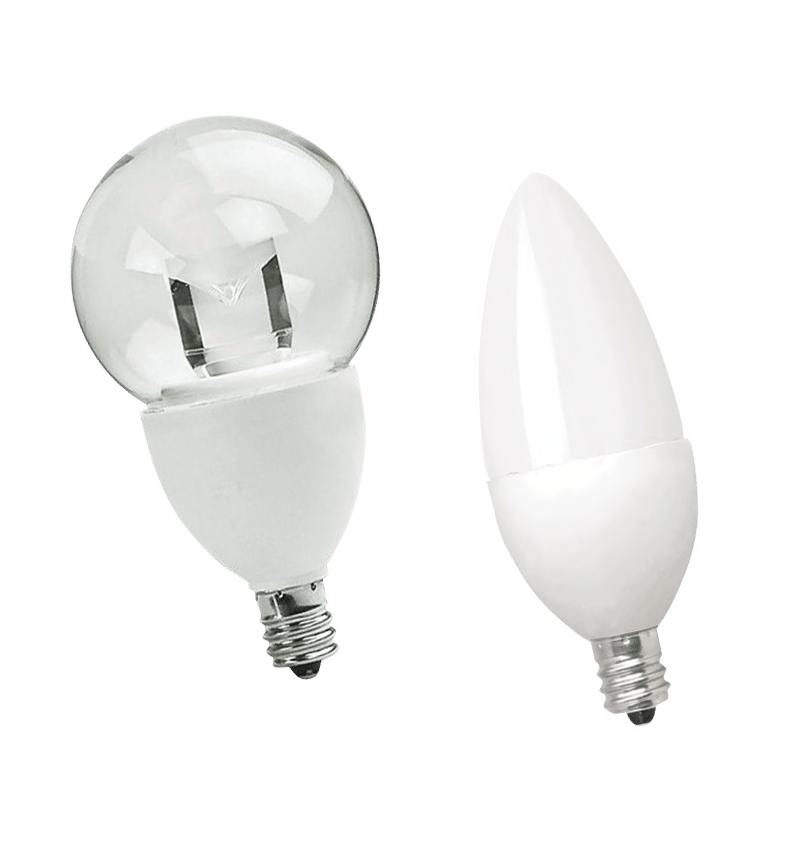

Deco/Candelabra Lamps (120VAC)
Dimmable Decorative Series
TCP’s Elite Decorative lamps closely mimic the look and feel of incandescent, but last much longer and provide excellent energy savings.
Features
- 40W incandescent replacement
- 120VAC TRIAC Dimmable
- Provides up to 80% energy savings compared to incandescent alternatives
- Smooth, uniform dimming – perfect for chandeliers
- Long life: 25,000 hours
- Excellent color consistency and high color rendering (CRI)
- UL damp location rated – excellent for use in outdoor applications
- E12 base
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-CAN-B11-0527K-E12-120-F | LED5E12B1127KF | 40W Incandescent | 5 | 2700K |
| EHB-CAN-B11-0530K-E12-120-C | LED5E12B1130K | 40W Incandescent | 5 | 3000K |
| EHB-CAN-G16-0527K-E12-120-C | LED5E12G1627K | 40W Incandescent | 5 | 2700K |

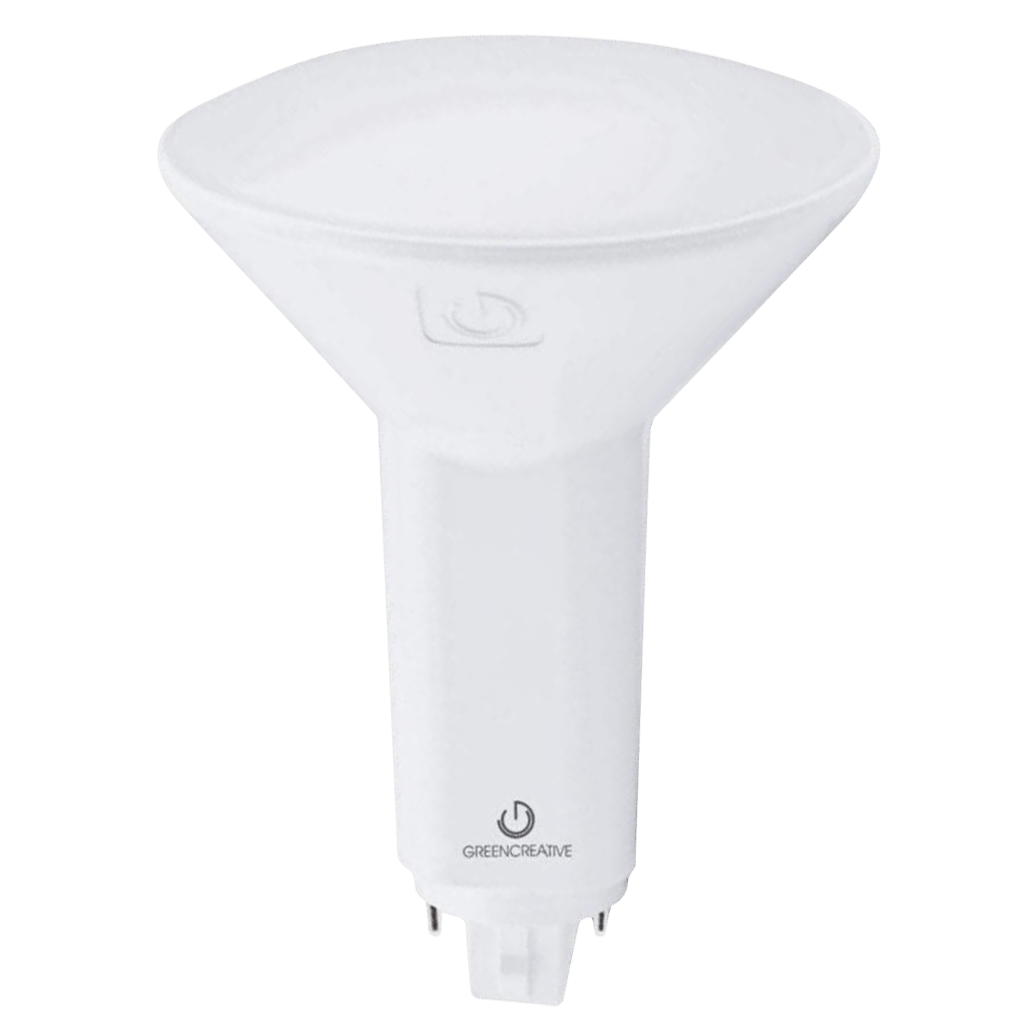

VERTICAL PL Lamp (120-277VAC)
Upgrade your lighting solutions with our 8.5W LED PL Lamp, designed for easy retrofit into recessed can fixtures.
Features
- Replaces 13W-26W CFL lamps
- Built-in universal voltage driver – BYPass installation
- 120 Lumens per watt
- 50,000 hours lifespan
- NSF certified
- Compatible with G24d / GX24d & G24q / GX24q installations
| SKU | Manufacturer Part Number | Replaces | W | CCT |
| EHB-PL-VERT-8.540K-G24Q-277 FR | 8.5PLV/840/HYBM | 26W Incandescent | 8.5 | 4000K |

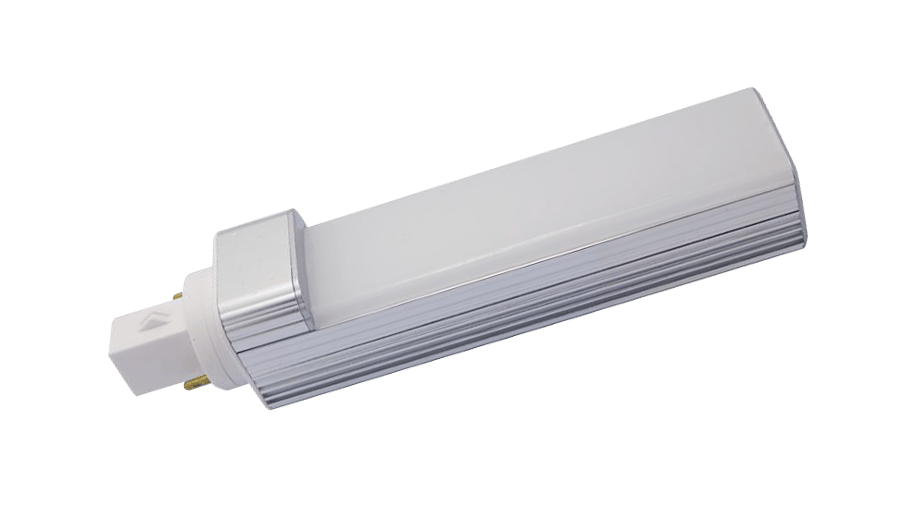

Horizontal PL Lamps
Upgrade your lighting solutions with our horizontal LED PL Lamp, designed for easy retrofit into recessed can fixtures.
Features
- 120-277 VAC
- Replaces 13W-26W CFL lamps
- 340° rotating base
- G24 plugin base
- 120° beam angle
- 50,000 hour lifespan
| SKU | Replaces | W | CCT |
| EHB-PL-1040K-G24Q-277-FR | 26W-32W CFL | 10 | 4000K |
| EHB-PL-1050K-G24Q-277-FR | 26W-32W CFL | 10 | 5000K |

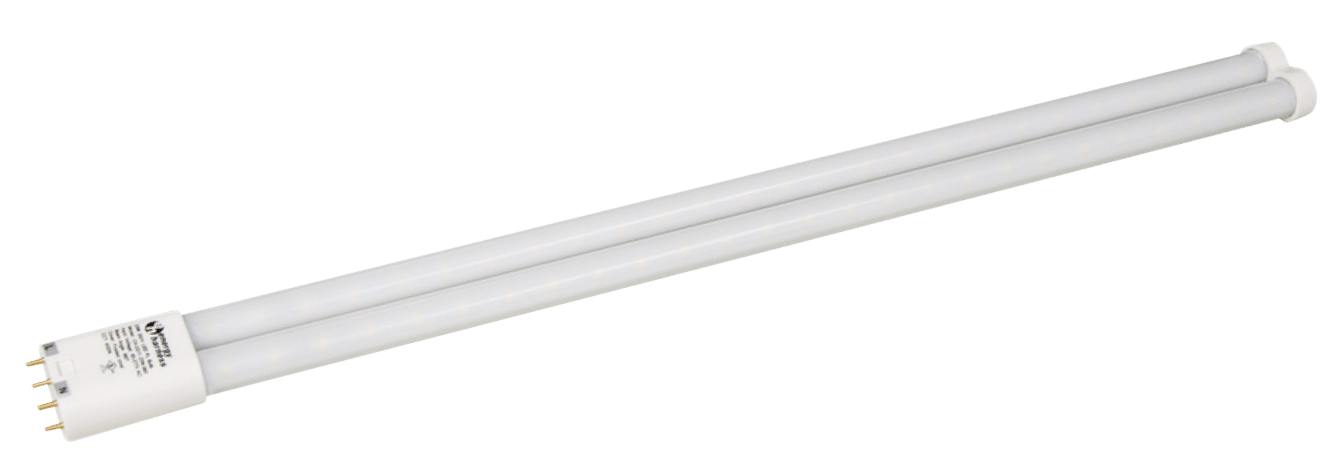

PLL Bulbs (120/277VAC)
Energy Harness® LED PLL style bulbs are designed to replace compact fluorescent PLL style bulbs. With half the energy usage of traditional lighting and no ballast required, these lights are sure to reduce your energy and maintenance costs as well as increase your light output. They are manufactured with plastic eliminating traditional hazards of mercury and glass.
Features
- 120/277 VAC
- CRI > 80
- Beam angle: 360?
- Ballast bypass
- Non-dimmable
- Working Temp: 4° – 113° F
- 2G11 base
| SKU | Replaces | W | CCT |
| EHB-PL-2340K-2G11-277 | 50W-75W Incandescent | 23 | 4000K |
| EHB-PL-940K-2G11-277 | 20W-40W Incandescent | 9 | 4000K |

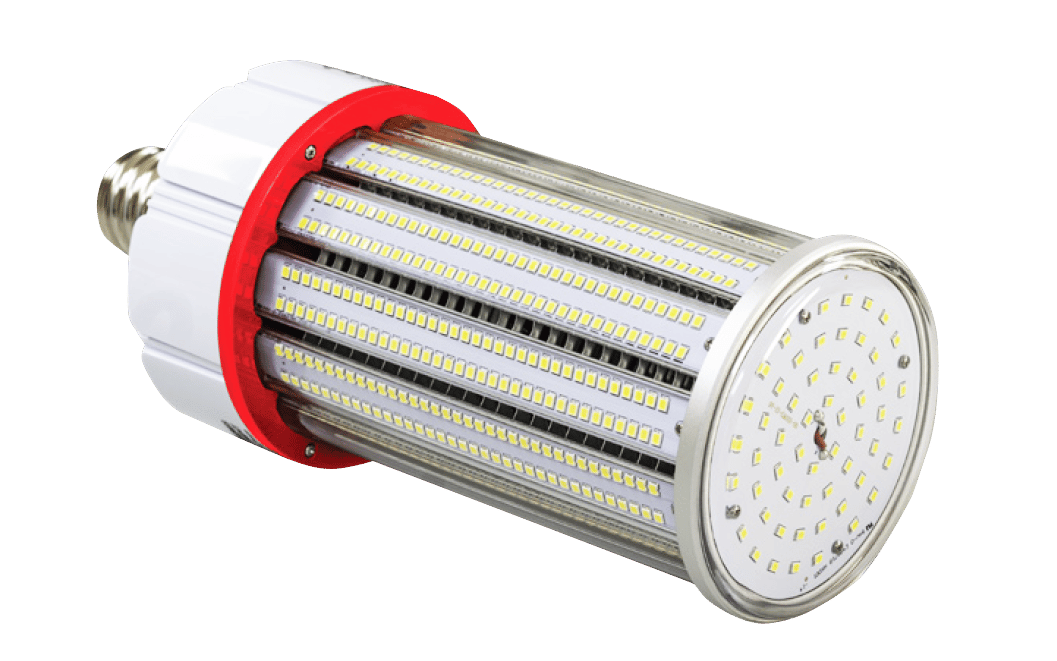

360? Corn Bulbs (120/277 VAC)
EHC LED 360° Bulbs provide 360° distribution while dispersing clean and even light. These LED bulbs are built with an efficient, heat dissipating design to ensure a long lasting lifespan. They save on average 50-60% on electrical usage and do not require the use of a ballast. These eco-friendly bulbs contain no mercury eliminating the disposal fees of traditional bulbs.
Features
- 120-277 VAC
- HID replacements
- CRI > 80
- Non-dimmable
- Working temp: -22? – +113?F
- Aluminum/ plastic housing
- E40 base (adapters available)
| SKU | Replaces | W | CCT |
| EHB-CC-12050K-E40-360-277 | 400W HPS | 120 | 5000K |
| EHB-CC-6050K-E40-360-277 | 175W-250W HPS | 60 | 5000K |
